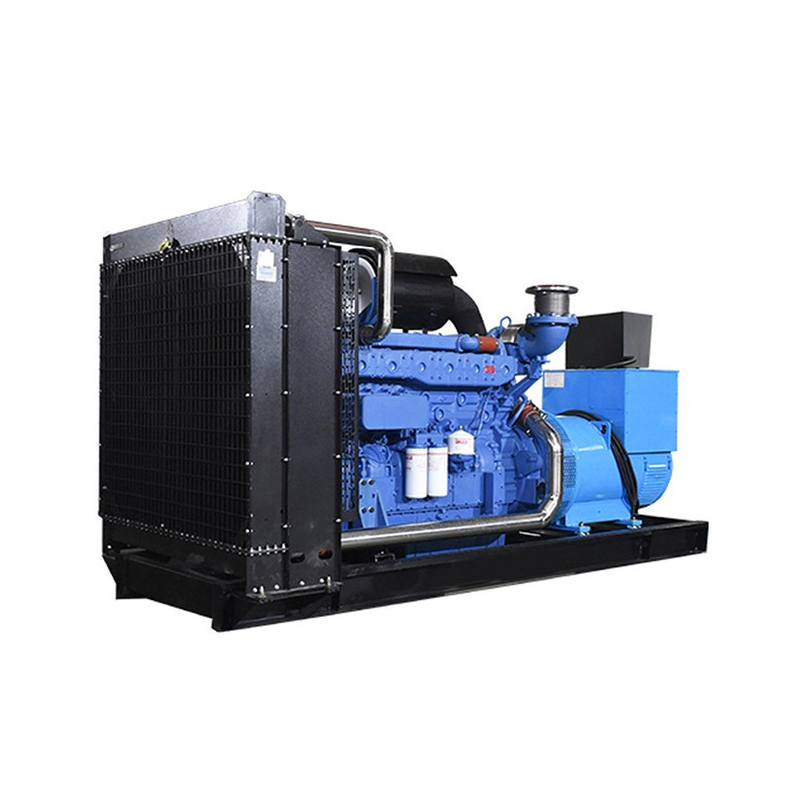

Yuchai Generator Sets 30–2673 kW
Contact Us
◉ Product Description
| Unit Model | Output Power (kW) | Electric current | Diesel Engine Model | Number of Cylinders | Bore × Stroke | Displacement | Fuel Consumption Rate | Unit Dimensions (mm) | Unit Weight | Voltage (V) | Frequency | Output | Detailed Specifications | |
| Prime | Standby | |||||||||||||
| Y20 | 18 | 20 | 36A | YCDV254FHZ-25 | 4 | 87*103 | 2.4L | ≤205g/kw.h | 1000*650*1000 | 890kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y25 | 22 | 25 | 45A | YCDV254FHZ-35 | 4 | 87*103 | 2.4L | ≤205g/kw.h | 1000*650*1000 | 880kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y33 | 30 | 33 | 54A | YC4D55Z-D20 | 4 | 87*103 | 2.45L | ≤225g/kw.h | 1000*650*1000 | 890kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y45 | 40 | 45 | 72A | YC4FA75-D30 | 4 | 108*115 | 4.2L | ≤205g/kw.h | 1650*650*1000 | 1000kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y55 | 50 | 55 | 90A | YC4D90-D39 | 4 | 108*115 | 4.2L | ≤205g/kw.h | 1750*850*1400 | 1100kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y65 | 60 | 65 | 108A | YC4D100-D39 | 4 | 108*115 | 4.2L | ≤205g/kw.h | 2400*900*1300 | 1300kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y70 | 64 | 70 | 115A | YC4A115-D3A | 4 | 108*115 | 4.2L | ≤205g/kw.h | 1600*700*1500 | 1320kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y90 | 80 | 90 | 144A | YC4A140-D3A | 4 | 108*132 | 4.8L | ≤210g/kw.h | 1800*760*1500 | 1400kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y100 | 90 | 100 | 162A | YC4A155-D3A | 4 | 108*132 | 4.8L | ≤210g/kw.h | 2500*900*1500 | 1340kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y120 | 100 | 120 | 180A | YC4A180-D31 | 4 | 108*132 | 4.8L | ≤210g/kw.h | 2500*1000*1600 | 1430kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y140 | 120 | 140 | 216A | YC6A205-D30 | 6 | 108*132 | 7.2L | ≤200g/kw.h | 2500*1000*1600 | 1600kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y150 | 140 | 150 | 252A | YC6A230-D30 | 6 | 108*132 | 7.2L | ≤200g/kw.h | 2500*1000*1600 | 1600kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y160 | 150 | 160 | 270A | YC6A245-D30 | 6 | 108*132 | 7.2L | ≤200g/kw.h | 2900*1200*1400 | 2500kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y180 | 160 | 180 | 288A | YC6A275-D30 | 6 | 108*132 | 7.2L | ≤200g/kw.h | 3000*1200*1400 | 2500kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y220 | 200 | 220 | 360A | YC6MK350-D30 | 6 | 123*145 | 10.3L | ≤195g/kw.h | 3000*1100*1700 | 2140kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y270 | 250 | 270 | 450A | YC6MK420-D30 | 6 | 123*145 | 10.3L | ≤195g/kw.h | 3000*1100*1700 | 2500kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y330 | 300 | 330 | 540A | YC6K500-D30 | 6 | 129*155 | 12.16L | ≤192g/kw.h | 3100*1100*1800 | 2800kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y350 | 320 | 350 | 576A | YC6K520-D30 | 6 | 129*155 | 12.16L | ≤192g/kw.h | 3100*1100*1900 | 3330kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y400 | 350 | 400 | 630A | YC6K570-D30 | 6 | 129*165 | 12.16L | ≤192g/kw.h | 3100*1100*1900 | 3300kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y440 | 400 | 440 | 720A | YC6T660-D31 | 6 | 145*165 | 136.35L | ≤195g/kw.h | 3950*1100*2000 | 4200kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y500 | 450 | 500 | 810A | YC6TD780-D31 | 6 | 152*180 | 19.6L | ≤195g/kw.h | 4000*1430*2050 | 4100kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y550 | 500 | 550 | 900A | YC6TD840-D31 | 6 | 152*180 | 19.6L | ≤195g/kw.h | 4000*1430*2050 | 4100kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y600 | 550 | 600 | 990A | YC6TD900-D30 | 6 | 152*180 | 19.6L | ≤195g/kw.h | 4000*1430*2050 | 4100kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y660 | 600 | 660 | 1080A | YC6C1020-D31 | 6 | 200*210 | 39.58L | ≤195g/kw.h | 4700*1500*2050 | 7500kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y710 | 650 | 710 | 1170A | YC6C1070-D31 | 6 | 200*210 | 39.58L | ≤195g/kw.h | 4700*1500*2050 | 7500kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y800 | 730 | 800 | 1314A | YC6C1220-D31 | 6 | 200*210 | 39.58L | 195g/kw.h | 4700*1500*2050 | 7500kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y900 | 800 | 900 | 1440A | YC6C1320-D31 | 6 | 200*210 | 39.85L | 195g/kw.h | 4700*1500*2050 | 7500kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y1000 | 900 | 1000 | 1620A | YC6C1520-D31 | 6 | 200*210 | 39.58L | ≤195g/kw.h | 4750*1870*2480 | 8500kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y1100 | 1000 | 1100 | 1818A | YC12VC1680-D31 | 12 | 200*210 | 78.17L | ≤196g/kw.h | 6500*2300*2600 | 13350kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y1350 | 1200 | 1350 | 2160A | YC12VC2070-D31 | 12 | 200*210 | 79.17L | ≤196g/kw.h | 6500*2300*2600 | 13350kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y1500 | 1350 | 1500 | 2430A | YC12VC2270-D31 | 12 | 200*210 | 79.17L | ≤196g/kw.h | 6500*2300*2600 | 13350kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y1600 | 1500 | 1600 | 2700A | YC12VC2510-D31 | 12 | 200*210 | 79.17L | ≤196g/kw.h | 6500*2300*2600 | 13350kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y1800 | 1700 | 1800 | 3060A | YC12VC2700-D31 | 12 | 200*210 | 79.17L | ≤196g/kw.h | 7500*2300*2800 | 15350kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y2005 | 1800 | 2005 | 3609A | YC16VC3000-D31 | 16 | 200*210 | 81.3L | ≤196g/kw.h | 8000*2400*2850 | 18620kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y2205 | 2000 | 2205 | 3969A | YC16VC3300-D31 | 16 | 200*210 | 81.3L | ≤196g/kw.h | 8000*2400*2850 | 18620kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y2405 | 2200 | 2405 | 4329A | YC16VC3600-D31 | 16 | 200*210 | 81.3L | ≤196g/kw.h | 8000*2400*2850 | 18620kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
| Y2673 | 2430 | 2673 | 4811A | YC16VC4000-D31 | 16 | 200*210 | 81.3L | ≤196g/kw.h | 8000*2400*2850 | 18620kg | 220/380 | 50Hz | Three-phase four-wire | Detailed Specifications |
